STORAGE · WLF ENERGY

Two ways to store.
One platform.

From the inverter on the wall to the container on the slab — WLF Energy storage spans three platforms: a three-phase inverter family, C&I battery cabinets, and grid-scale containers. One product story, one warranty story, one accountable EU operator.

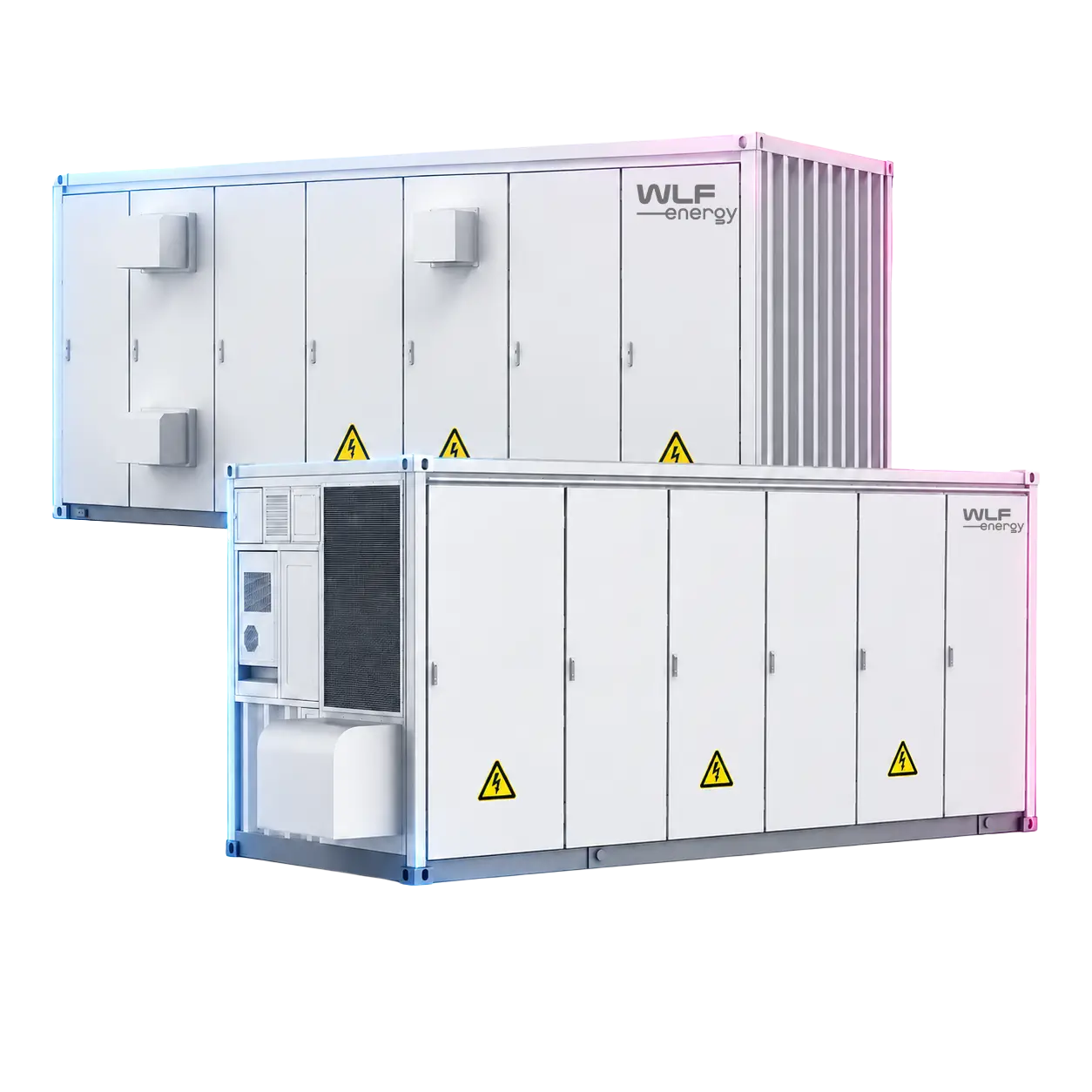

Product Image
5 MWh
Per container
<10 ms
Backup hand-off
N° 01 · TECHNOLOGY ROADMAP
WLF ENERGY · STORAGE

Tomorrow’s Storage.
Engineered Today.

The next generation of WLF ESS storage is already engineered: up to 25,000 cycles at 80% capacity retention, a −40 °C to +80 °C operating window and 50C discharge — with reduced swelling and improved abuse safety built in.

THE ROADMAP

The next storage generation — longer life, wider range, more energy.

CYCLE LIFE
up to 25 000
TEMPERATURE
−40 to +80 °C
DISCHARGE RATE
50C
CYCLE LIFE
25 000

Next-generation ESS storage rated for up to 25,000 cycles with 80% capacity retention at end of life.

OPERATING WINDOW
−40 to +80 °C

Specified from −40 °C to +80 °C, so one storage platform serves Nordic winters and southern-European summers alike.

DISCHARGE RATE
50C

Cells rated for 50C discharge — instant power delivery for backup hand-off, grid firming and frequency response.

ABUSE SAFETY
Hazard Level 2

Reduced swelling and improved abuse safety — engineered to Hazard Level 2 across the full 25,000-cycle life.

THE RANGE · AT A GLANCE

One platform,
three roles.

One engineering standard, the same EU operator, one warranty story — from a panel on the wall to a megawatt park on the slab. Pick the layer your site needs.

COMMERCIAL
WLF C&I Battery
418kWh
Rated power215 kW
Cell typeProprietary · liquid-cooled
Cycle life25,000 cyc
Liquid-cooled cabinets that turn a tariff into an asset — peak-shaving and arbitrage.
GRID / UTILITY
WLF Utility Battery
5.015MWh
Round-trip≥ 88 %
Cell typeProprietary
IntegrationBattery · EMS · PCS
Bankable, grid-scale containers — battery, EMS and PCS integrated per container.
N° 02 · WHY WLF
One platform. One operator.

Built for the wall.
Built for the slab.

From a 6 kW inverter in a German home to a multi-megawatt container park, every WLF format is engineered, integrated and warranted to the same WLF standard. Modular and scalable, it grows with the site — and one accountable EU operator stands behind all of it.

One platform

The same long-cycle engineering standard runs right across the family — wall inverter, C&I cabinet and grid-scale container. One safety story, one datasheet language, no surprises at integration.

Modular & scalable

Start with a single battery-and-inverter setup and stack up from there. Cabinets rack together, containers parallel into MWh and GWh parks — the same kit, just more of it.

One EU operator

One warranty, one named operator, one point of contact — from order to commissioning to year fifteen. Monitoring, diagnostics and support without the finger-pointing.

N° 03 · WHERE IT GOES

One range. Every site.

From a wall in a German home to a substation on the grid, the same platform and the same operator follow the energy wherever it needs to sit.

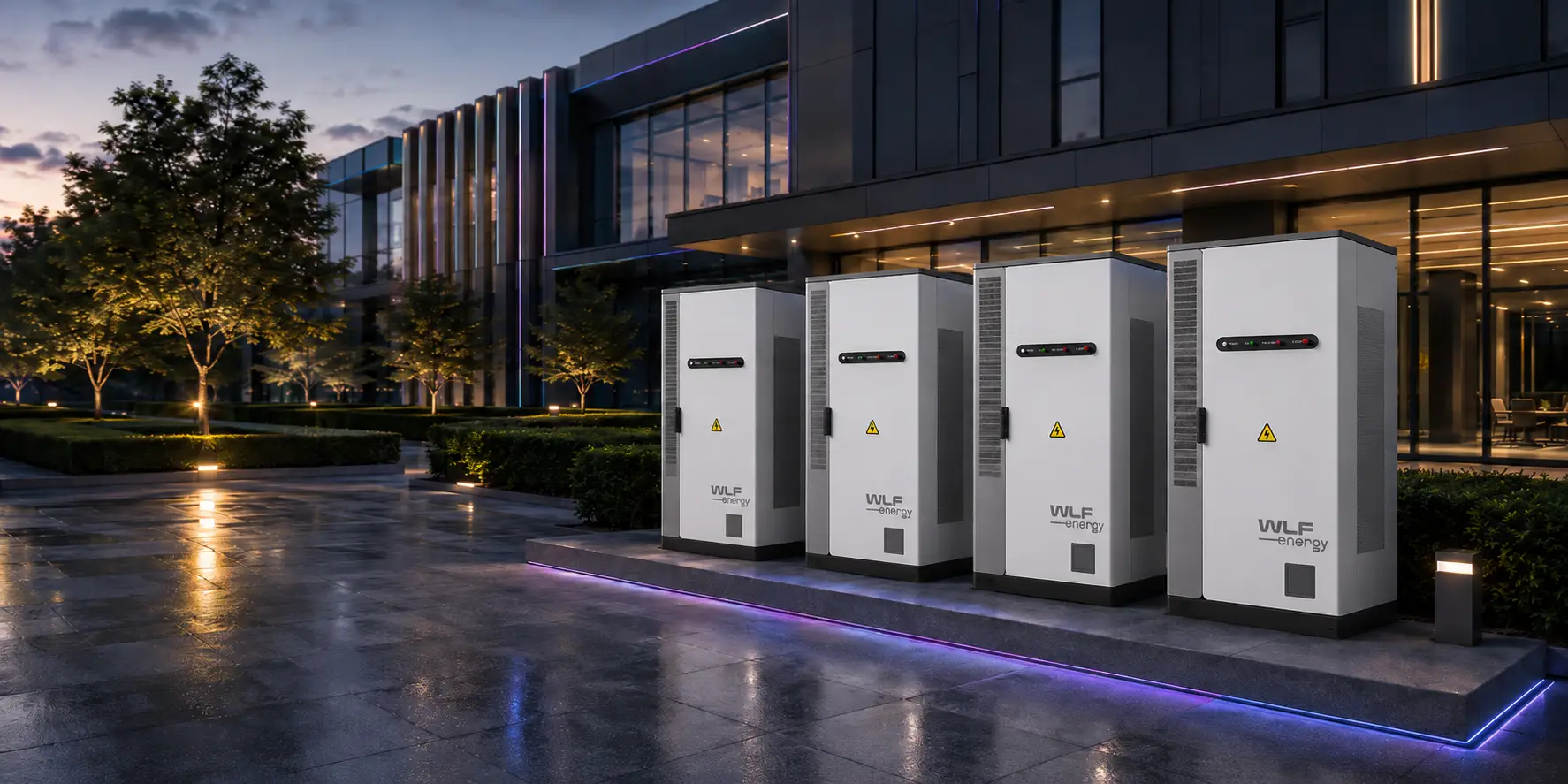

COMMERCIAL & INDUSTRIAL

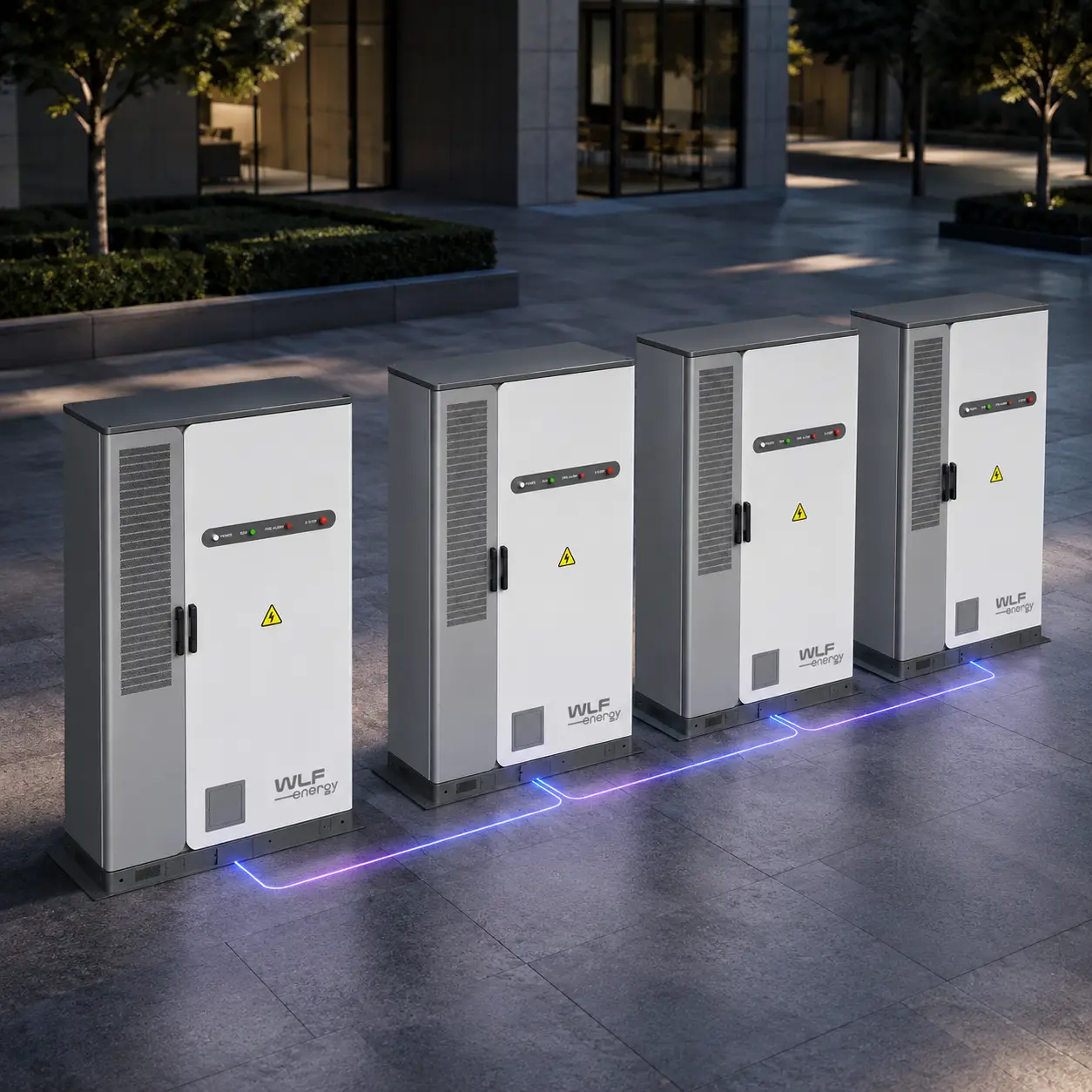

C&I battery cabinets

Peak-shaving, demand charge management and arbitrage for factories, logistics depots and campuses — liquid-cooled and rack-stackable.

Typical range233–418 kWh
UTILITY & GRID
Grid-scale containers

Bankable energy parks, firming and ancillary services — battery, EMS and PCS integrated per container, paralleled into MWh and GWh.

Typical range3.42–5.015 MWh
MICROGRIDS & ISLANDS
Across the full range

Resilient, self-balancing energy for remote sites, island grids and critical facilities — one platform from the inverter to the container.

Typical rangeWall → grid

Off the shelf, today.
Optimized from cell to container.

Three storage formats, one product story — pick the column and sign the spec.

WLF C&I 105
233 kWh105 kW · liquid-cooled
POWER
Rated AC power105 kW
AC voltage400 V
Rated current152 A
Topology3-phase 4-wire
BATTERY
Cell typeProprietary prismatic
System voltage830 V
Cycle life25,000 cyc
ConfigProprietary
CABINET
CoolingLiquid
Fire suppressionAerosol + water
IngressIP54 / IP67 pack
Weight2,800 kg
Cell formatPrismatic
WLF C&I 215
418 kWh215 kW · liquid-cooled
POWER
Rated AC power215 kW
AC voltage690 / 800 V
Apparent power236.5 kVA
Topology3-phase 3-wire
BATTERY
Cell typeProprietary
Rated voltage1,330 V
Cycle life25,000 cyc
ConfigProprietary
CABINET
CoolingLiquid
Fire suppressionAerosol
IngressIP55
Weight3,800 kg
Current THD< 3 % @ rated
WLF UTILITY 3.42
3.42 MWhper container · ≥88% RTE
CONTAINER
Form factorModular container
CoolingIntelligent liquid
Temp. control± 7 °C
IntegrationBattery + EMS + PCS
BATTERY
Cell typeProprietary (LiFePO4)
Cycle life25,000 cyc
Round-trip eff.≥ 88 %
Calendar life15 yr design
SAFETY
Fire suppressionPack-level
MonitoringMulti-sensor RT
BMSLive cell monitoring
CoolingLiquid
WLF UTILITY 5.015
5.015 MWhper container · Proprietary
CONTAINER
Form factorModular container
CoolingLiquid, high-density
Cell type optionsProprietary
IntegrationBattery + EMS + PCS
BATTERY
Cycle life · Proprietary25,000+ cyc
Round-trip eff.≥ 88 %
Calendar life15 yr design
SSB safetyIntrinsic
SAFETY
Fire suppressionPack + container
IntegrationBattery · EMS · PCS
Cell monitoringReal-time
Critical infraBankable

Specifications are subject to change without prior notice and may vary depending on raw material availability, geopolitical developments, and other factors beyond our control. For the most current product specifications, please contact our team.
